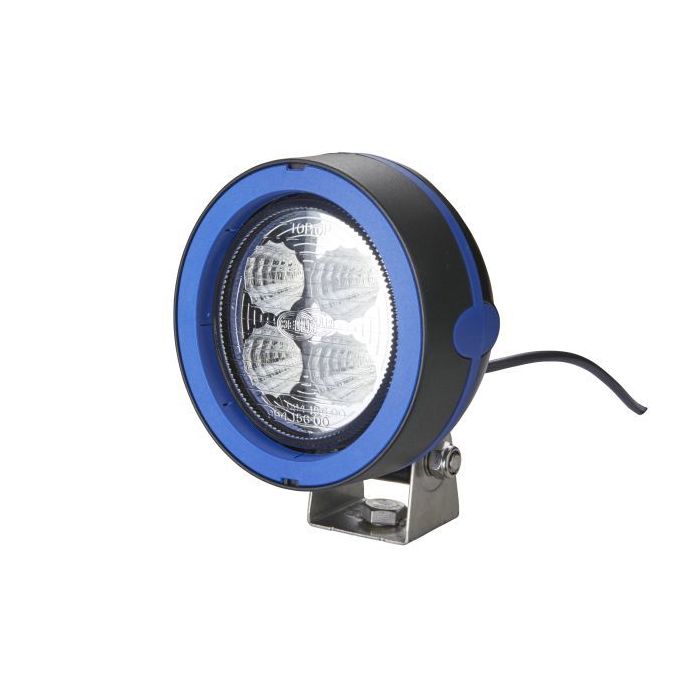

Hella 1GM996136311 Mega Beam G3 Work Lamp, Close Range Mega Beam Gen. Iii LED

Hella 1GM996136311 Mega Beam G3 Work Lamp, Close Range Mega Beam Gen. Iii LED

Hella mega beam G3 work lamp, close range mega beam gen. iii LED, a heavy-duty work lamp for trucks, machinery, agricultural and mining vehicles.

LED-Worklight - Mega Beam Gen. III - 12/24V - 800lm - mounting/Bolted - Vertical - Short distance lighting - Cable: 2000mm - Plug: open cable ends

This worklight uses four high-power LEDs as its light source. The LEDs are multivolt-compatible (12 and 24 V). Due to its low power consumption, the Mega Beam LED is ideal for use on vehicles with battery operation or whose alternator is already heavily loaded. The Mega Beam LED Generation II is resistant to shocks, vibrations and voltage fluctuations. The worklight does not require any maintenance after installation. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 33 volts. With 6500 Kelvin, the light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and prevent rapid eye fatigue. The rear of the housing is made of aluminium and has large cooling fins that ensure optimal heat dissipation to ensure a long service life of the LED. Due to its compact dimensions, the worklight can be used universally. The robust worklight is resistant to high-pressure cleaning. To protect the glass pane, the housing has a protruding rim on its front. The power connection is made via a permanently mounted 2-pole cable, 2,000 mm long.

Features

• Lamp Type: LED - Number of LEDs: 4 - Power consumption: 13W - Colour Temperature: 6500K
• Patterned diffusing lens
• Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K9K/IP6K7
• Aluminium Housing - Housing Colour: Black/blue - Diffusing Lens Material: Glass
• Width: 110mm - Height: 120mm - Depth: 84mm
• Compact worklight with 4 high-power LEDs for pendant mounting
• Close-range illumination for 12 and 24V vehicle electrical systems
• Black lacquered case with cooling fins
• Innovative LED technology in compact design
• 30 % more light than Generation II, with the same power consumption

Specifications

• Part number: 1GM996136311
• Hella number: 1GM 996 136-311
• Barcode (EAN): 9002920147392
• Brand: Hella
• Mounting Type: Bolted / mounting
• Fastening Type: Vertical
• Lamp Type: LED
• Light Design: LED
• Colour Temperature: 6500 K
• Luminous Flux: 800 lm
• Voltage: 12 / 24 V
• Power Consumption: 13 W
• Width: 110 mm
• Height: 120 mm
• Depth: 84 mm
• Lens Material: Glass
• Cable Length: 2000 mm
• Plug Type: open cable ends
• Housing Type: Aluminium Housing
• Housing Colour: black/blue
• Lens Type: patterned lens
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• fulfils ECE standard: R10
• Light Distribution: Short-Range Illumination
• Number of LEDs: 4
• Product line: Mega Beam Gen. III

with cable Assy./disassy. by qualified personnel required!
