Hella 1GA996188001 Power Beam 1000 Work Lamp, Close Range, Glass Len Short Distance Lighting

Hella 1GA996188001 Power Beam 1000 Work Lamp, Close Range, Glass Len Short Distance Lighting

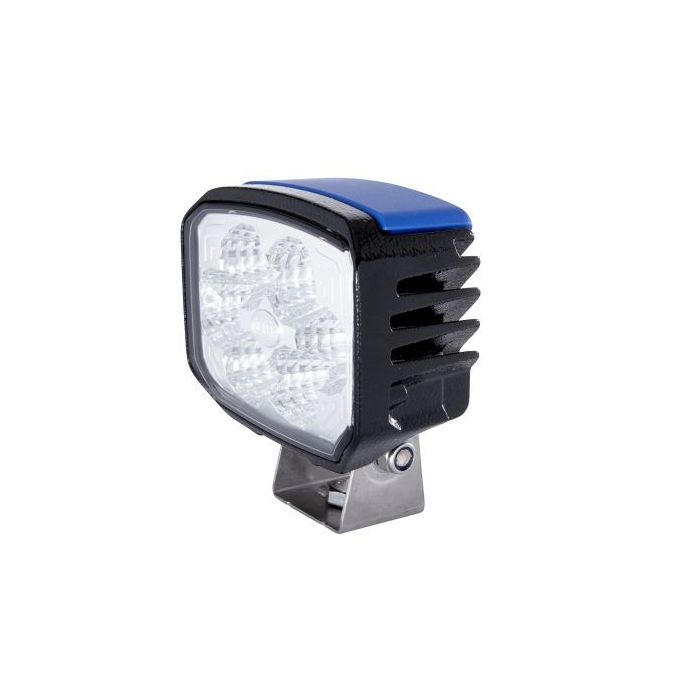

Hella power beam 1000 work lamp, close range, glass len short distance lighting, a heavy-duty work lamp for trucks, machinery, agricultural and mining vehicles.

LED-Worklight - Power Beam 1000 - 24/12V - 850lm - mounting/Bolted - Swivelling Mounting Bracket - Short distance lighting - Plug: DEUTSCH plug

The Power Beam 1000 is an LED worklight that sets new standards with its powerful light output. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 33 volts. Thanks to its powerful light output, the Power Beam 1000 can replace standard halogen worklights (e.g. H3 / 55 watts) - with a power consumption of only 18 watts. This makes the worklight ideal for use on vehicles with battery operation and where the alternator is already heavily loaded. The light of the 6 high-performance LEDs is distributed in the near working area by a specially developed multi-faceted reflector. The Power Beam 1000 can be mounted either upright (0°) or suspended (180°). With a colour temperature of 6,500 Kelvin, the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and prevent rapid eye fatigue. The worklight's black housing of is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the 6 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited.

Features

• OE References
• Lamp Type: LED - Number of LEDs: 6 - Power consumption: 13W - Colour Temperature: 6500K
• Patterned diffusing lens
• Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K9K/IP6K7
• Aluminium Housing - Housing Colour: Black/blue - Diffusing Lens Material: Glass
• Width: 112mm - Height: 129mm - Depth: 62mm - without pipe
• Compact design
• Powerful and maintenance-free
• Universally applicable

Specifications

• Part number: 1GA996188001
• Hella number: 1GA 996 188-001
• Barcode (EAN): 9002920141932
• Brand: Hella
• Mounting Type: Bracket mounting
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Height: 114 mm
• Overall Height: 129 mm
• Width: 112 mm
• Depth: 62 mm
• Light Distribution: Short-Range Illumination
• Light colour: white
• fulfils ECE standard: R10
• Plug Type: DEUTSCH plug
• Registration Type: ADR/GGVS approved / ECE approved
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Luminous Flux: 850 lm
• Theoretical luminous flux: 1100 lm
• Colour Temperature: 6500 K
• Number of LEDs: 6
• Power Consumption: 13 W
• Housing Colour: black/blue
• Housing material: Die-Cast Aluminium
• Lens Material: Glass
• Lens Type: patterned lens
• Lens Colour: Crystal clear
• Shape: Square
• Reverse polarity protection: Yes
• Voltage from: 10.5 V
• Voltage to: 32 V
• Temperature range from: -40°C
• Temperature range to: 50°C
• Weight: 656 g
• Product line: Power Beam 1000

OE References without cable Assy./disassy. by qualified personnel required!
